Oil Air Cooler (Turbine and Compressor Oil Cooler)
The oil air cooler is designed for cooling low-pressure oil and lubricating oil used in gas turbine engines and compressors at gas compressor stations. It is intended for outdoor operation.
The unit is supplied as a single block in full factory-ready condition and does not require on-site assembly.

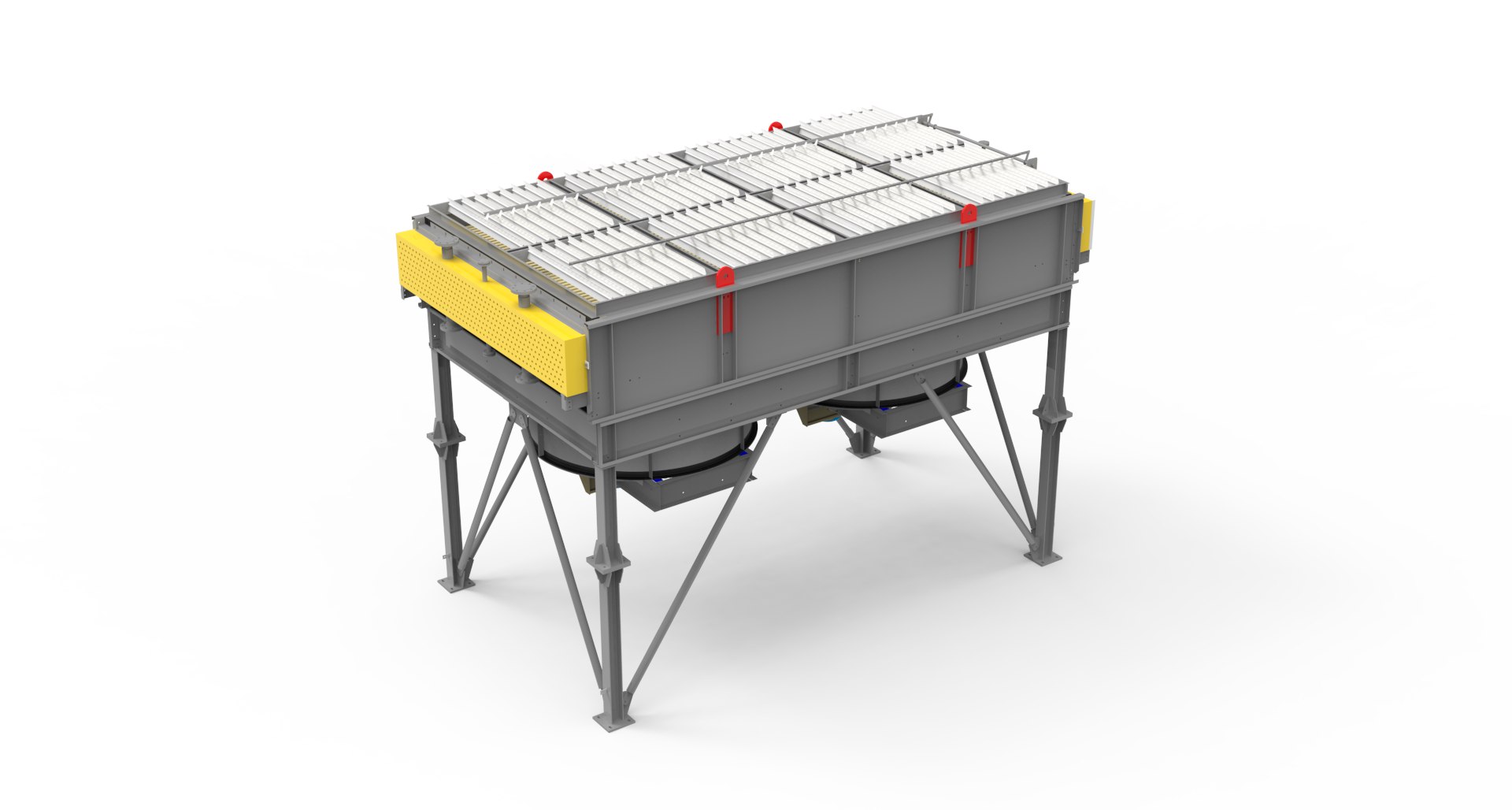

The cooler consists of one heat exchanger section with end chambers, cooled by an airstream generated by axial fans. The section is installed horizontally and mounted on a metal supporting frame together with axial fans, drives, louvers, diffusers, and ducting.
| Maximum oil inlet temperature, °C | +75 |
| Oil outlet temperature, °C | +51 |
| Design ambient air temperature, °C | +47 |
| Design pressure, MPa (kgf/cm²) | 0.7 (7.0) |
| Design temperature (for strength), °C | 150 |
| Minimum wall temperature of pressure-bearing components, °C | -40 |
| Inlet/outlet diameter, mm | 100 |
| Working medium | Flammable |
| Chamber material | 09G2S / P355NL1 |
| Tube material | Aluminum |
| Fan motor supply voltage | 380 V |
Manufactured in accordance with ISO.
The unit shall be subject to hydrostatic testing with a test pressure of 10 kgf/cm² (1.0 MPa) and a holding time of 10 minutes.
