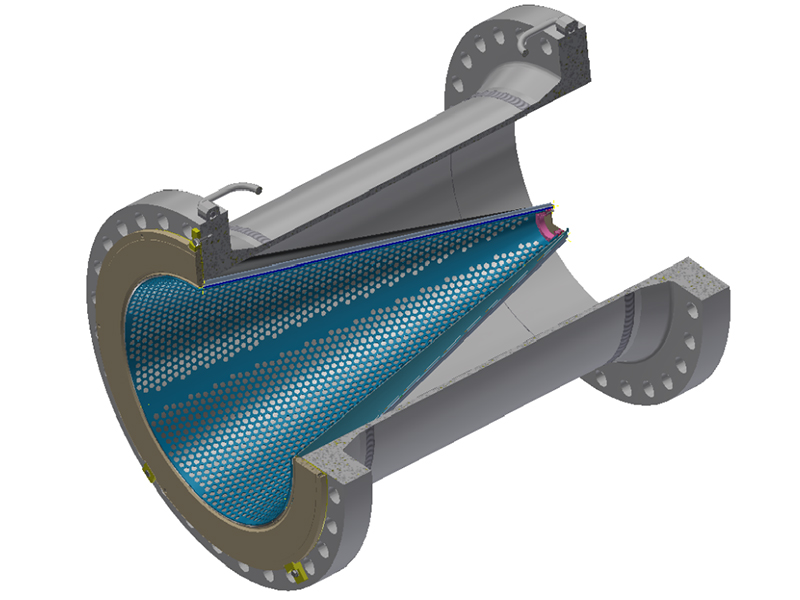

Strainers are designed for coarse mechanical cleaning of various media from medium and large fractions contained in them. The filter is equipped with a filter element – a mesh with cells of 630 microns and 1000 microns (selected with consideration of the required degree of filtration according to the process conditions).
PrJSC “Turbogaz” is capable to produce a range of strainers with DN parameters from 100 to 1400 mm, PN up to 20 MPa.
An example of a symbol for a strainer when ordering:
FS-500-63-630
FS – strainer (filter strainer)
500 – nominal diameter (mm)
63 – conditional pressure (bar)
630 – degree of filtration (µm)
Strainers are designed in accordance with international and specialized standards (DSTU, GOST, ISO, DIN, ANSI, API, ASME), as well as taking into account the Customer’s additional requirements.
